240z 260z 280z ultimate rear end convertion kit with 8.8 rear end coilovers and wilwood brakes
For sale is only the custom made parts required for the entire swap plus required hardware. All OEM parts will need to be bought from auto parts stores.
• What this kit allows you to do:
• Mount an 8.8 IRS differential from an 2002-2005 Ford Explorer/Mercury Mountaineer. This is practically the same differential used in the 03/04 cobras, just cheaper and has a stronger rear cover from the factory.
• Use a custom differential stub axles along with off the shelf components to convert to Porsche 930 CV joints and 930 axles. A F150 front axle outer CV joint is used for the outboard CV joint. The F150 CV uses the same splines as the 930 stuff and has a 33 spline axle which goes into a ~2000 Dodge Intrepid Front Hub. The Intrepid hub has the 5x4.5" bolt pattern(Mustangs, newer Nissan's, etc). If you are looking to stay 4 lug that is an option as well. However, I am not currently planning on drilling the hubs for 4 lug, so your favorite local machine shop will need to be sourced. So from the inside to outside you have: 8.8 Differential->Custom Stub Axle->Porsche 930 CV Joint->Porsche 930 Axle->F150 Front Outer CV Joint->Dodge Intrepid Hub->Wheel.

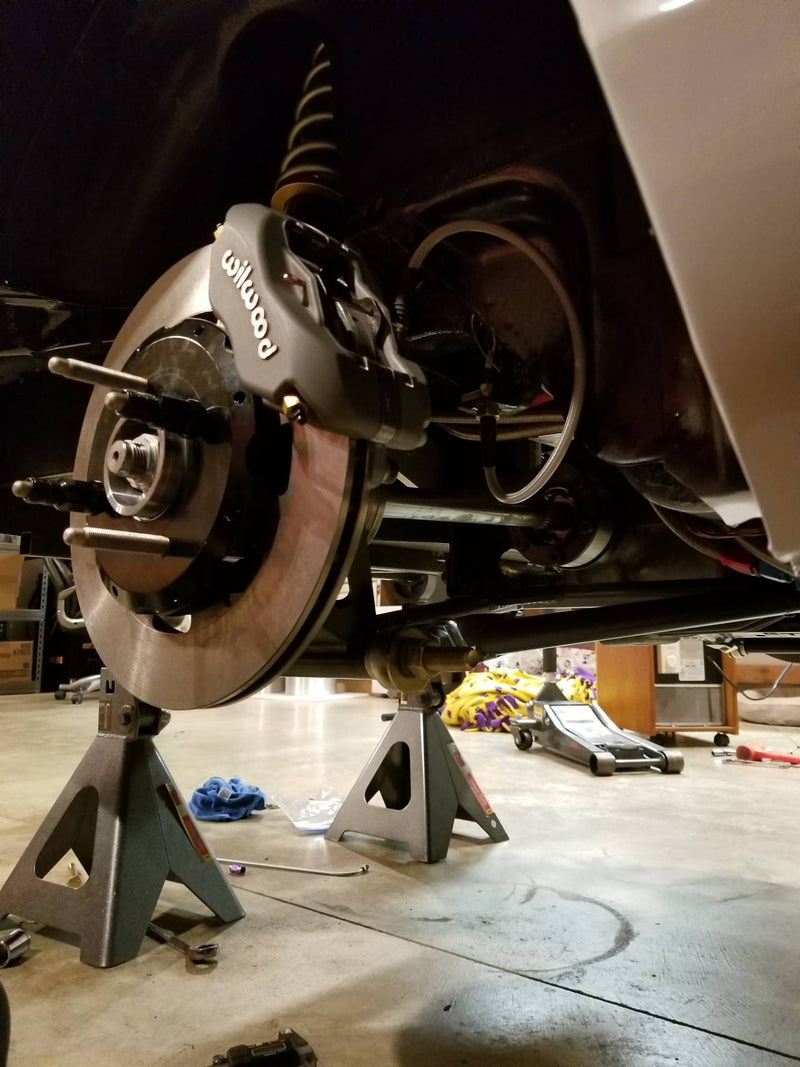

• Use my custom suspension upright to mount the Intrepid Hub Assembly along with Coil-overs and Koni struts(Or other options are in the works). For brakes you have the option of either Wilwood 4 piston calipers and 2 piece 12.2" rotors, or running cobra brakes that are a popular swap for the stock rear setup
• Why it is the best IRS setup for S30s out there:
• Custom billet chromoly Output shafts included!.
• In the even the CV Joints become the weak link you can upgrade to 300M CV Joints, 300M axles, replace the F150 CV Joint with a Porsche 930 Micro stub and another 930 CV Joint(The F150 setup is cheaper).
• The 8.8 IRS differential has every gear ratio you could ever want for about 150 per gear set. You can get bearings/parts at your local parts store. It's an all aluminum housing so its relatively light. You can actually buy differentials for the thing(Unlike the Nissan diffs).
• Large wilwood brakes, koni struts, coil-overs.Or modify the shock tube to work with Silver Mine motors coilovers and other sumular brands
• Budget friendly, uses lots of off the shelf parts to lower cost.
• What I actually provide:

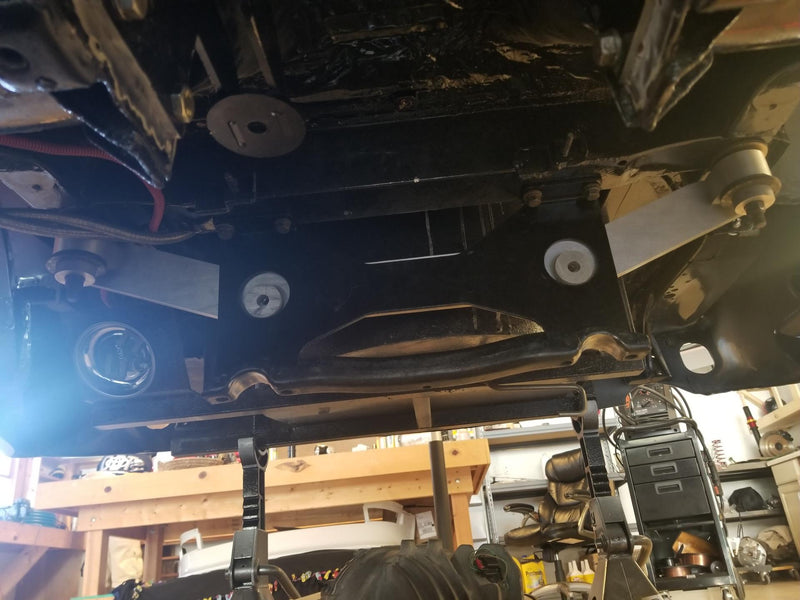

• Front differential mount. This bolts in where the RT(Ron Tyler) style diff mount bolts in. If you have a high HP car I would recommend welding this in because the bolts/nuts have been known to come loose with a mount styled like this. The mount is up and out of the way of everything and does not impair getting the differential out if it was welded in.

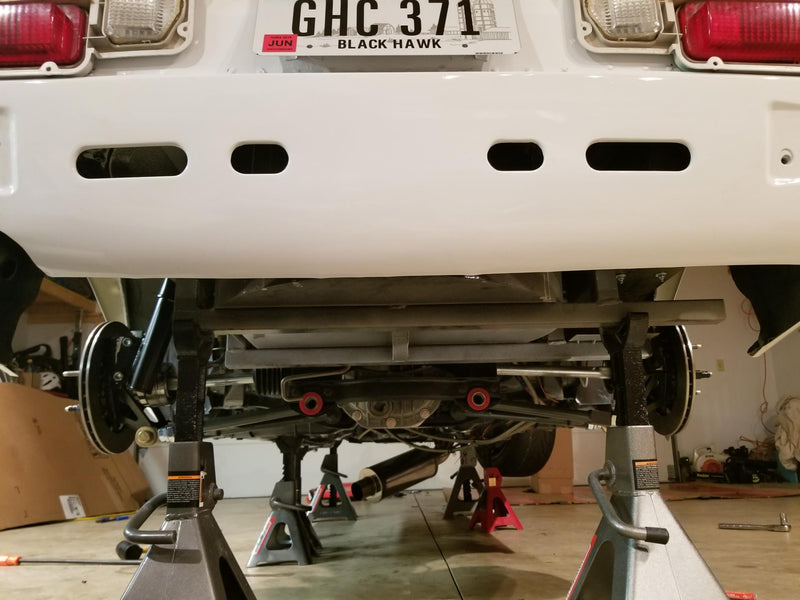

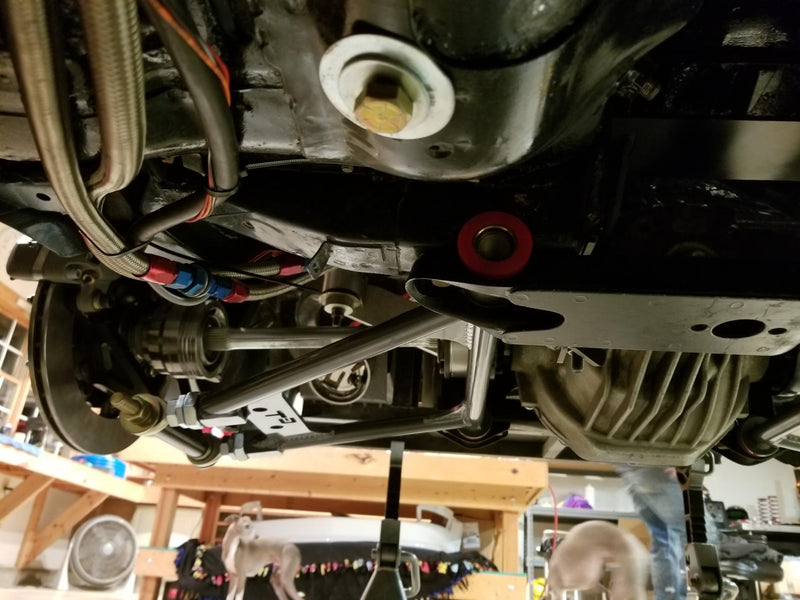

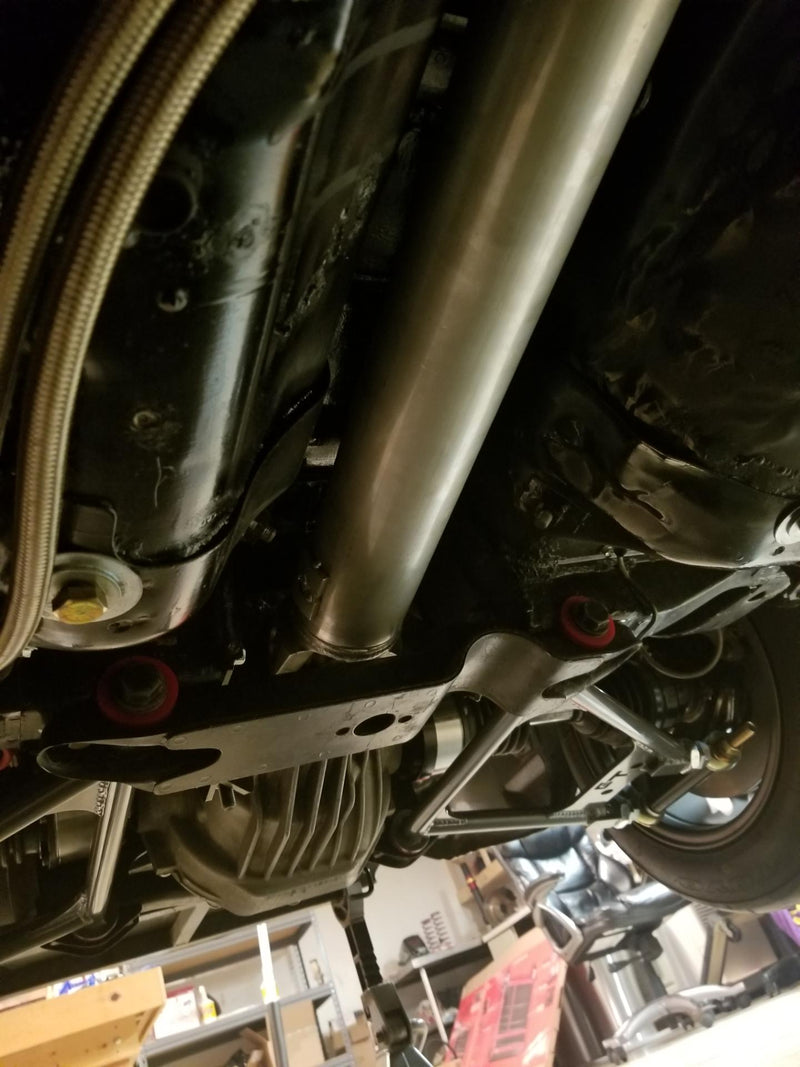

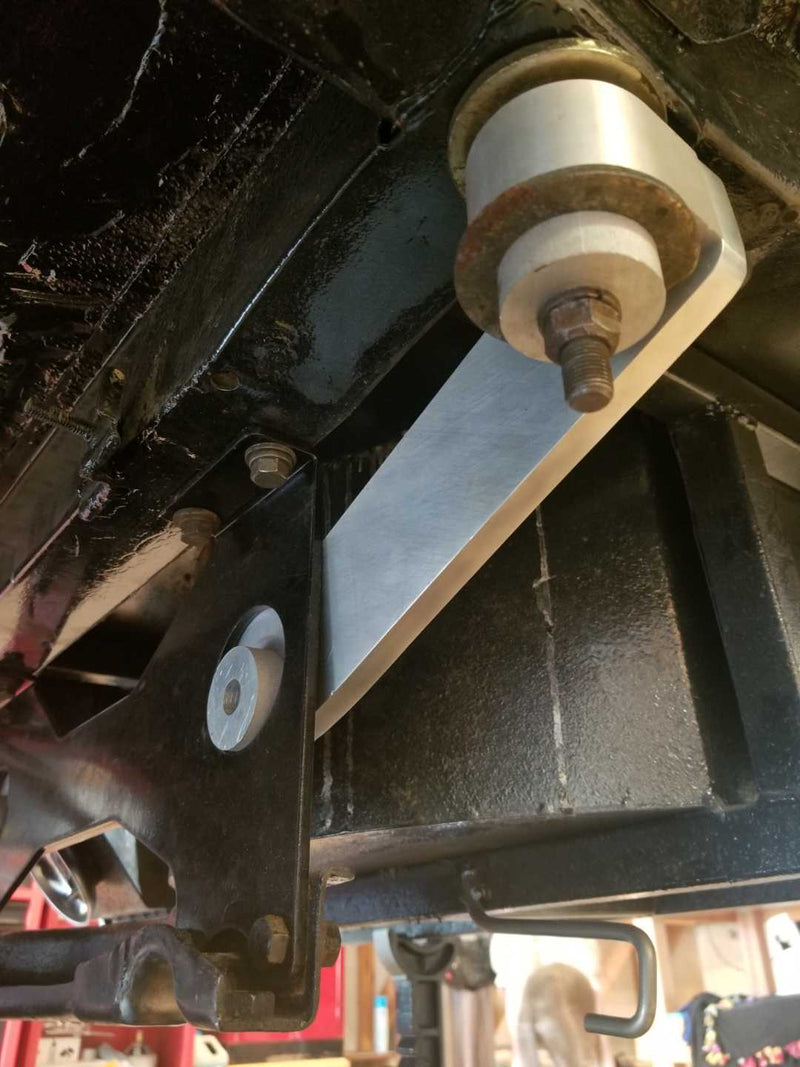

• Rear Differential Mount/Mustache Bar. I make an aluminum(6061-T6) mustache bar that bolts to the factory studs and mounts the rear of the 8.8 diff. It uses polyurethane bushings in the same location as the stock mustache bar.
• Rear LCA drop down/dogbone. The rear differential mounts go through the stock LCA drop down brackets so I make a new steel one which replaces the old drop downs and bolts right to the piece which holds the bushing.
• 8.8 Differential Stub Axle custom made from 4143 steel and painted. This allows you to bolt up a Porsche 930 CV joint.

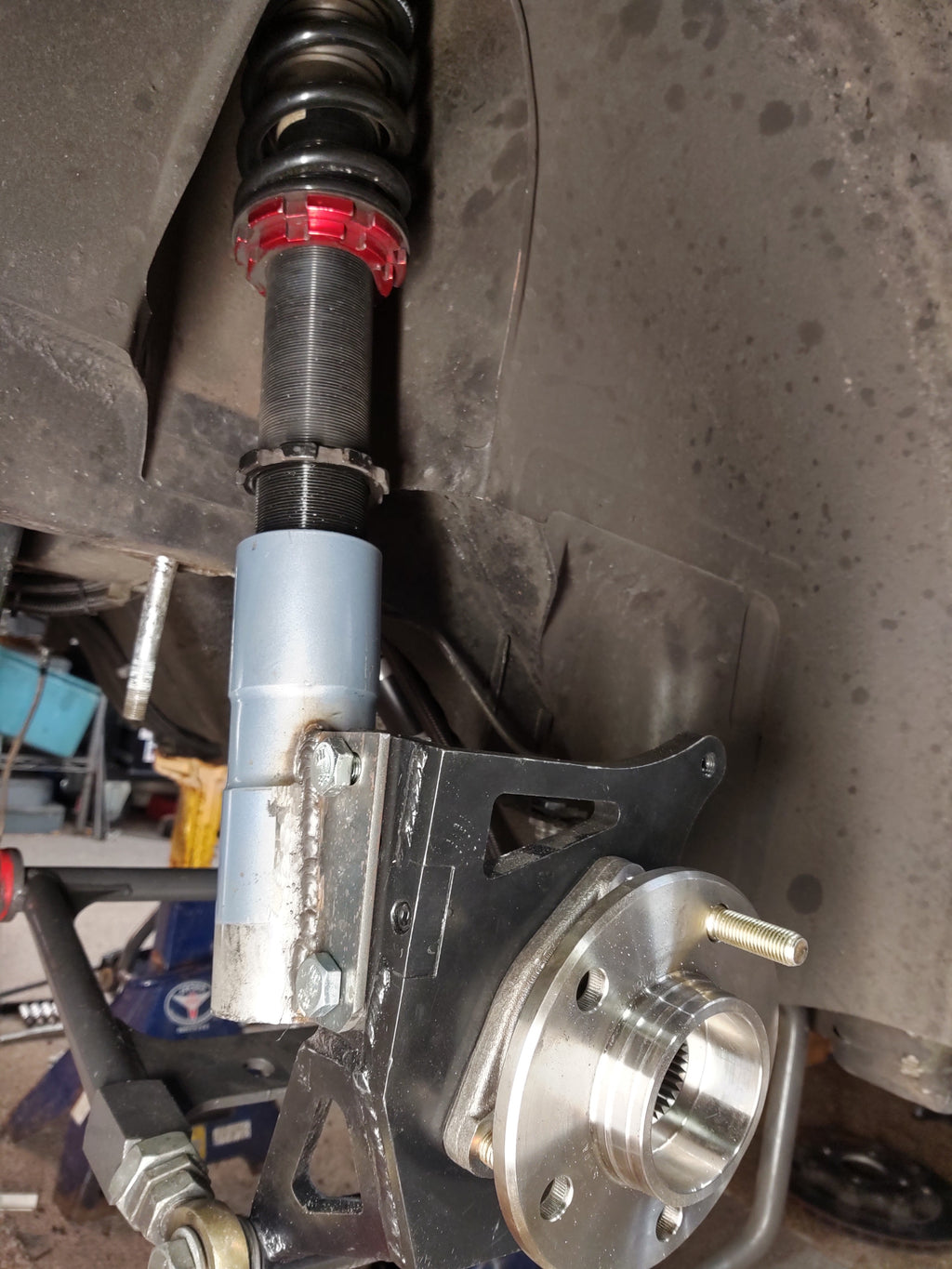

• Suspension Upright/Strut Tube. I provide a custom upright that holds the Intrepid Hub, Wilwood brakes, Koni struts(Or other options), Coil-overs from BC racing(Or any coil-over kit which fits the stock strut tubes). It uses a bolt on strut tube that has built in camber adjustment. You can use the stock strut top hat if you don't want to go to camber plates.
• Every bolt you will need to bolt it all up.
• Everything painted coated black
• Anything you can buy off the shelf. I'm not into the parts selling business, I can't compete with large retailers like Summitracing.com, Jegs, Rockauto.com, etc. I provide a detailed list of everything you need which includes part numbers, links to the cheapest place I could find to buy it, prices, quantities, etc. You just go through the list and order everything and it gets shipped straight to you. This makes it cheaper for you and less of an investment on my part to order lots of parts up front.
• I currently do not assemble the CV axles for you. This is probably the hardest part of the whole install. The F150 CV Axle you buy from "insert auto parts store here" must be taken apart to get the outer CV joint. The shaft must actually be cut off close to the outer CV joint in order to disassemble the joint to remove the F150 shaft. It is really not that difficult its just messy(CV Grease) and a little time consuming.
• The 8.8 differential. You can pick these up on ebay, from junk yards, from that 02+ explorer in the walmart parking lot, etc etc. If you get it from a junk yard and can get the CV axles with it for cheap, then you are in good shape. The condition of the explorer CV axles does not matter, all I need is the inner spline portion.
• The 600HP+ supercharged LSx motor that Texis300 has putting power through this setup(With a clutch between the two). However, if you provide me with his motor, I will give you a kit for free.
• How much it will hurt your pocket book:
• The custom parts that I listed off above are going to cost $1350. This includes everything I listed out above. I have attached a parts list below detailing what the total setup should cost for everything but a driveshaft.
• My price does not include shipping. website will quote you.
• On the spreadsheet currently it says it will cost $3365 for everything. Keep in mind guys this is the differential, CV Axles, Wilwood brakes, Koni Struts, Coil-overs, etc. This gets you a completely new rear end with very nice, strong parts.

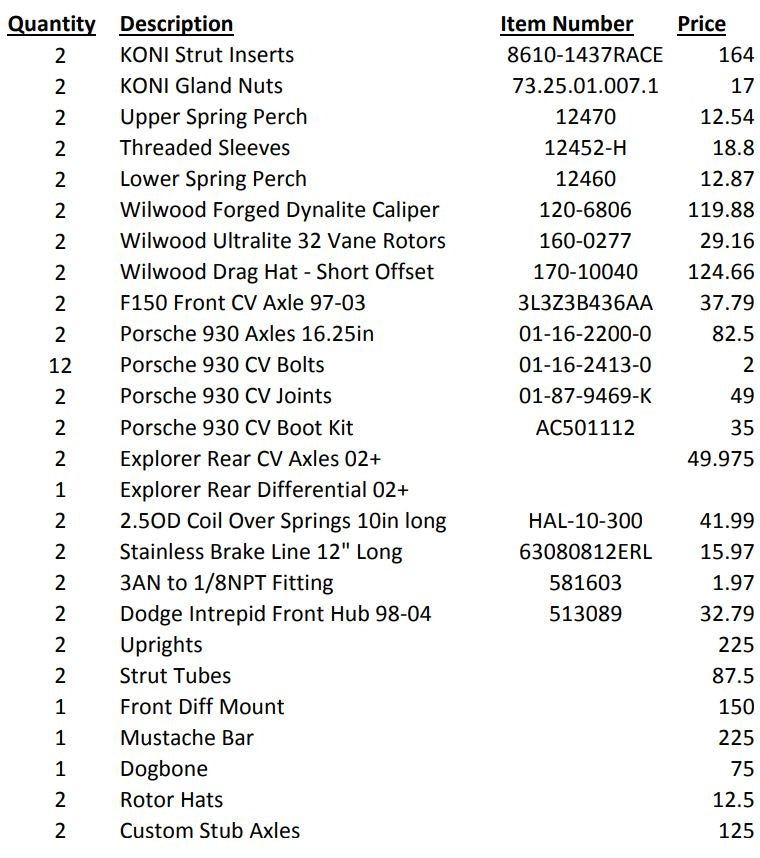

OEM parts list: see picture of part list.
rubber mustache bar bushings is part number 9.9111 from energy suspension universal kits (not included in this kit)
retainer clip for output shaft that plugs into 8.8 diff ford part number 1l2z4b422ba inner!
The f150 outer cv that you want is the masterpro 60-2112 from oriellys. The cardone ones "stars" aren't a good fit.
4 lug brake rotor hats for rotors wilwood instead of 5 lug part #170-6996
If you do not want to use the ford f-150 outer CV you might be able to use this part with another 930 CV.
https://dunebuggywarehouse.com/products/micro-stub-axle-for-930-cv-33-spline-for-dune-buggy-and-sand-rail-16-2310-0
note:
our 8.8 output shafts Are threaded M8 thread.
