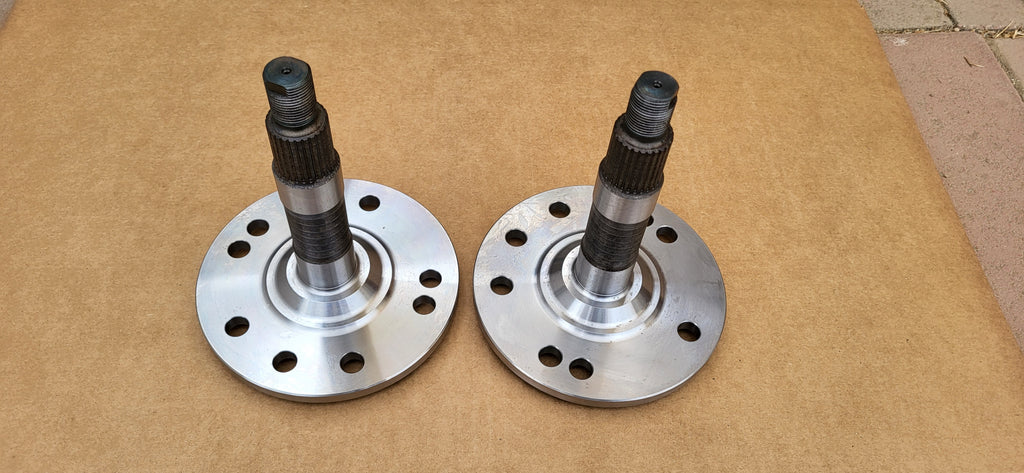

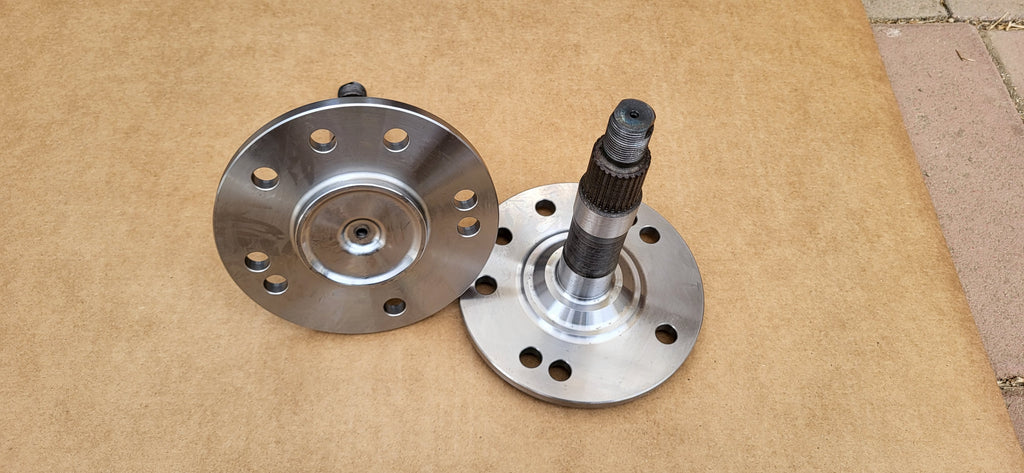

These are full custom made billet rear stub axles. They will fit on any 1969-1978 240Z, 260Z, and 280Z. if you have 240z then you will need to order our 27 spline companion flanges.
They are 27 spline so you will need to use stock OEM 260z - 280z companion flanges. The companion flange will bolt directly to your stock R180 or R200 differential axle. To be used with stock 240z-280z wheel bearings. Stock style wheel studs can be used.
bolt pattern is 5x114.3 (5x4.5 in.) and 4x114.3 (4x4.5 in.). They are a popular upgrade because they allow you to use new style wheels. They will not change the geometry of your car at all. Stock drum brake will work, and all our brake upgrade kits. Please send us your stub axles as cores and save $. Email us for more info.
Material: made out of 4340 billet steel on a CNC machine. Double tempered, Heat treated, Deep cryogenically heat treated.
Note. 260Z and 280Z came with 27 spline companion flanges. The 240Z came with 24 spline companion flanges. If you have a 240Z then you will need to source to 280Z companion flanges, or buy our new reproduction companion flanges. Also stock wheel studs can be used or any other wheel stud that has the same neural size as stock. sold as a pair of 2 pieces.
