Description
IIL GPS Speedometer Antenna / Sender and receiver.
Can directly use for programmable speedometer sending unit.
Power: 10-30 VDC
Output 1: pulse output, 16,000 pulse/miles, or 9,943 pulse / km. See signal screen shot below. This signal is for speedometer input, normally only need to use this.
Output 2: standard NMEA0183 protocol output, 9600 baud rate, RS232 series signal. Can be directly use for navigation system input. This signal is not for speedometer input use.

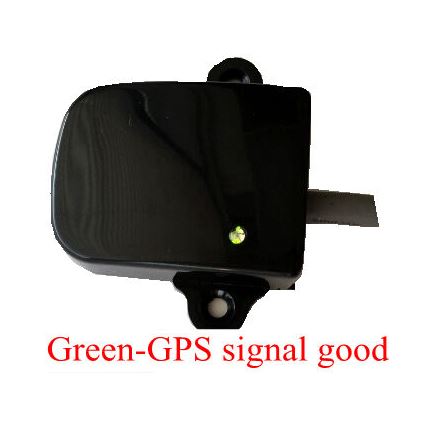

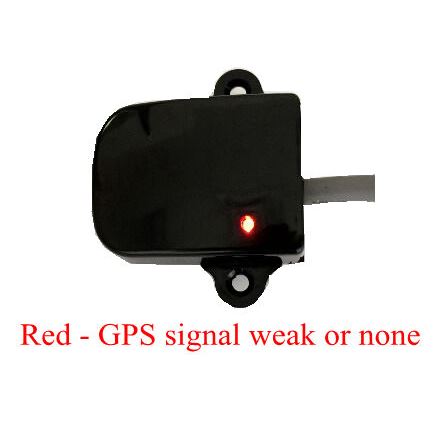

Indicate LED: green – signal is good, red – weak or no signal.
GPS signal update rate: 10/second, or 10 HZ.

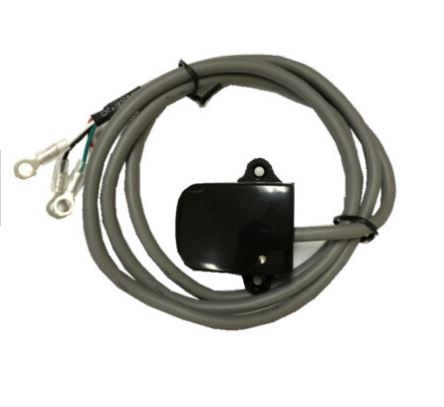

Dimensions: 2” x 1.5” x 0.65”; Mounting holes distance: 1.9”; Cable length: 4’ (48”), mounting screws are not included.
Accuracy: 3M-CEP
Wiring:
In order to use this sender as a speedometer sender, your speedometer must can setup pulses/mile to 16000, if your speedometer does not have this parameter, you can NOT use this GPS sender.
To quick test, just connect sender to +12V and ground (no gauge), the LED should turn to green in a couple minutes, otherwise the satellite signal is not enough.

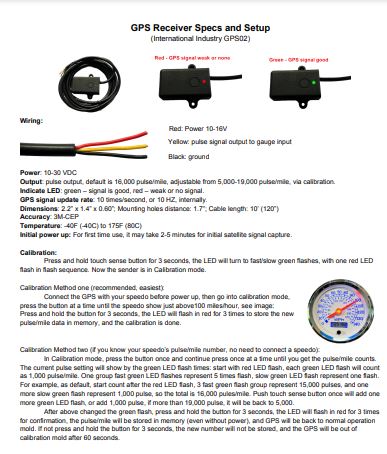

Manual download here:
www.intindustry.com/files/GPS_Specification.pdf
For speedometer, see our store listing:
stores.ebay.com/industrialstuffs/4675295017
Pulse signal output (for speedometer input):
