Silver Mine Motors COILOVER SUSPENSION KIT FOR DATSUN 280zx 32 STEP DAMPER COILOVERS NISSAN 1979-1983
Complete Coilover packages come with Shocks, coil springs, front camber plates all in 1! After a decade of track and canyon testing, we have formulated a winning setup for the 280zx suspension. This Coilover kit will make your S130 handle turns with confidence and predictability. The front damper can be adjusted to be stiff for track and auto-x, but also can be turned down to be comfortable on bumpy canyon roads. Front and Rear shocks are adjustable. Pictures are not actual.
The newest most up to date technology put into these coilovers. 32 step adjustment of damper! Adjustable ride height 1-3 inches lower! Adjustable camber plates Front! Increased travel compared to stock strut and coilover kits and sectioned struts. preloaded spring, unlike old style coil overs.
Mono-Tube, Top Mount, 32 Step Damper & Ride Height Adjustable
Street Sport Spring Rate: Front 4KG/ Rear 5KG (225 LB. front, and 280 LB. rear)
With Pillow Ball Mount and Camber Plate.

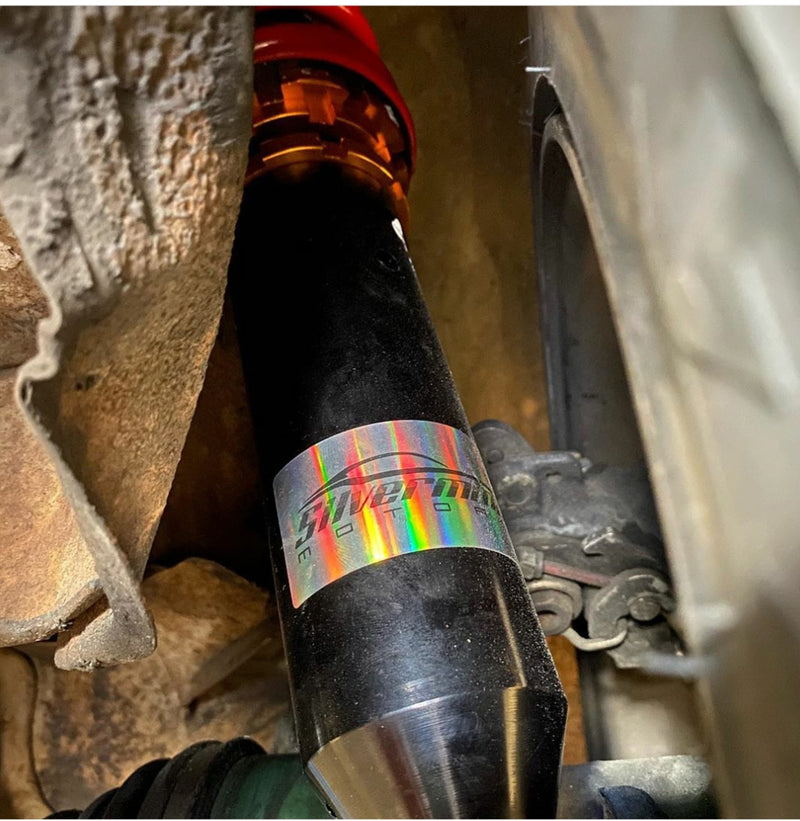

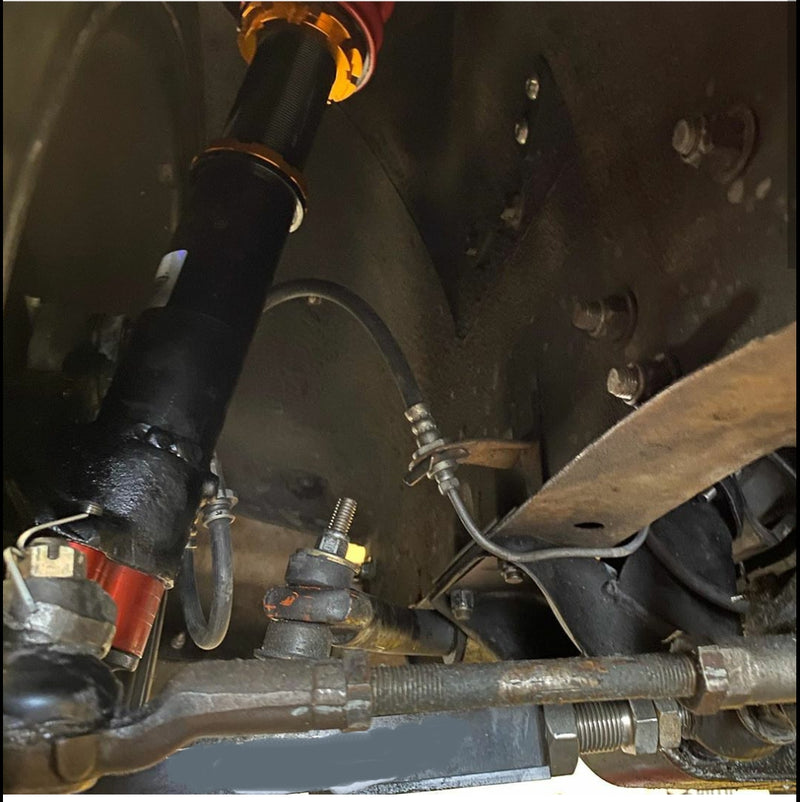

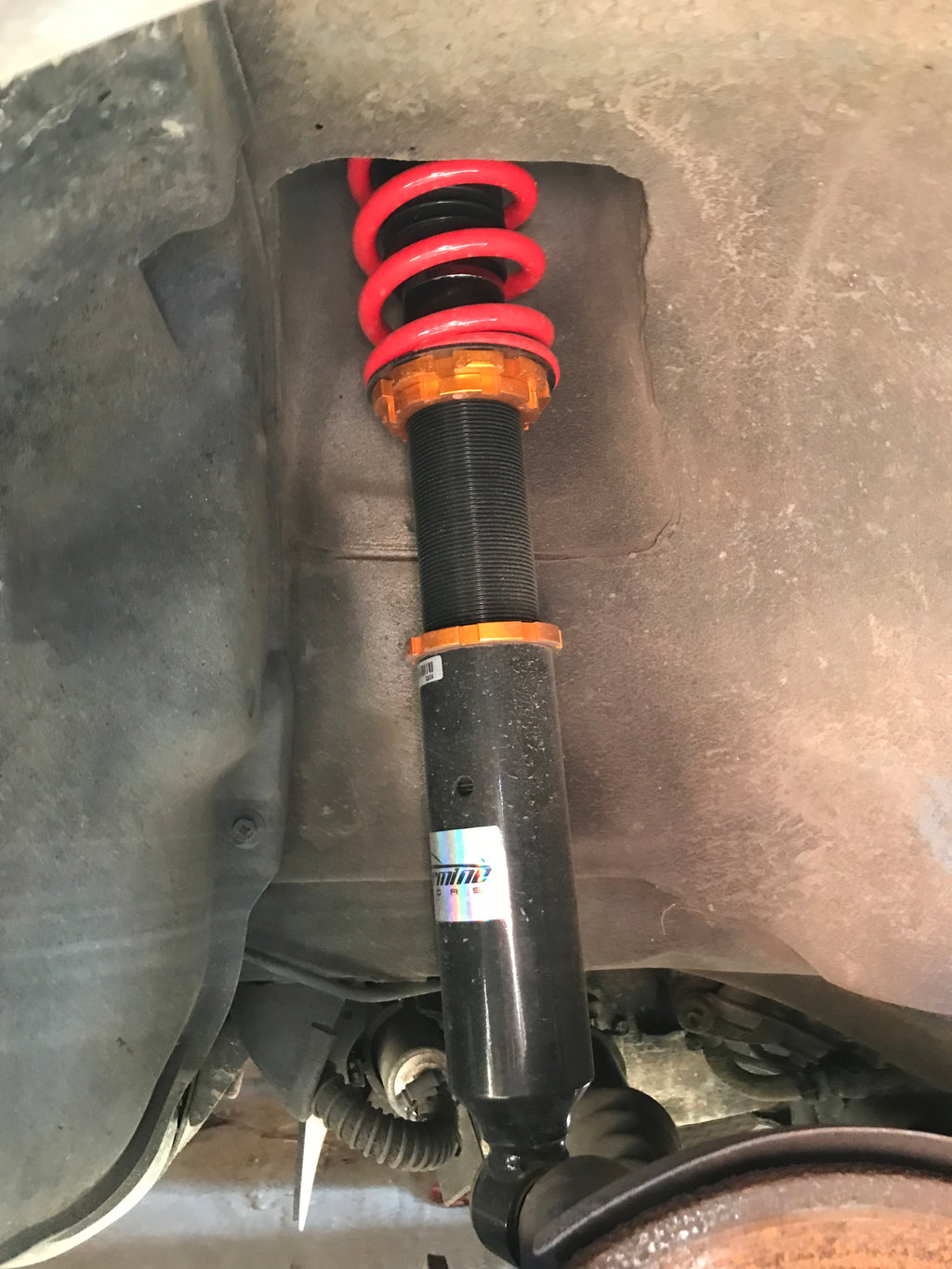

How to install: front : Cut and Weld Factory Spindles. Each Bottom Of the Coilover Has Open Tube or Sleeve, Cut Factory shock tube (leave a 2"-2.25" nub of the old shock tube), slide the New Coilover over the old shock tube 2" nub until it hits the base and then weld it. Rear coilover simply bolts on. Please Make Sure You Understand What Needs To Be Done. Otherwise Please DO NOT Buy.
280zx uses softer Spring Rate In the Front and Heavier Spring Rate In The Rear.
Highlights:
- 32 Step Damper Adjustable front and rear shocks
- Precise control damper valve, You can make them extremely soft on level 1 and extremely hard on level 32.
- Expansion/Suppression of shock adjustment
- Height and low adjustable, Superb road handling qualities and great looks
- Single Cylinder, or Mono-Tube Design, with Larger cylinder and piston design, advances driving stability and dexterity
- ARTC Durability Test & Salt Spray Fog Test, Guaranteed with Top Quality Material and Long Durability
Shock tube diameter is 22MM. Thicker than other Coilovers available.
replacement shocks are $200 each special order. Contact us if interested.
Spring inside diameter is 63mm
rear spring is 8.55 inch long
front spring is 7 inch long

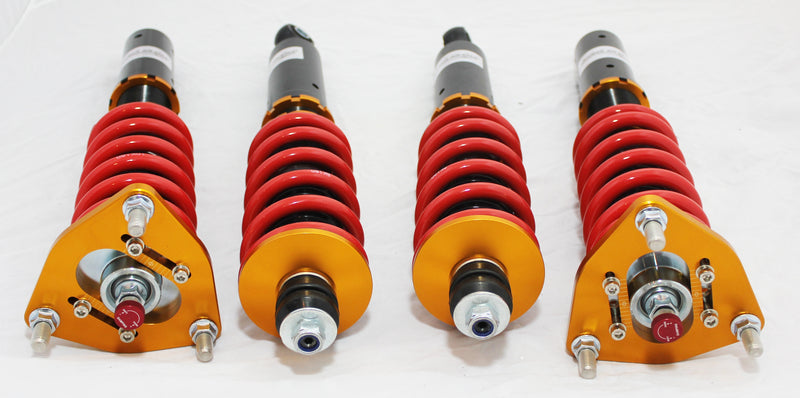

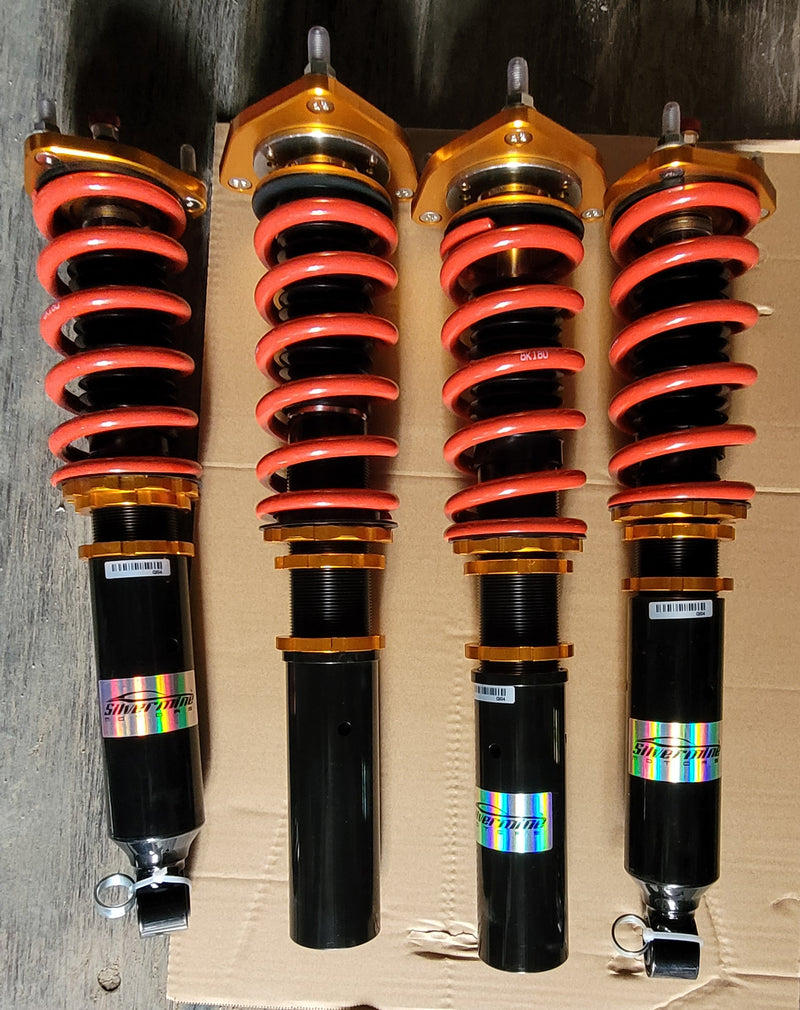

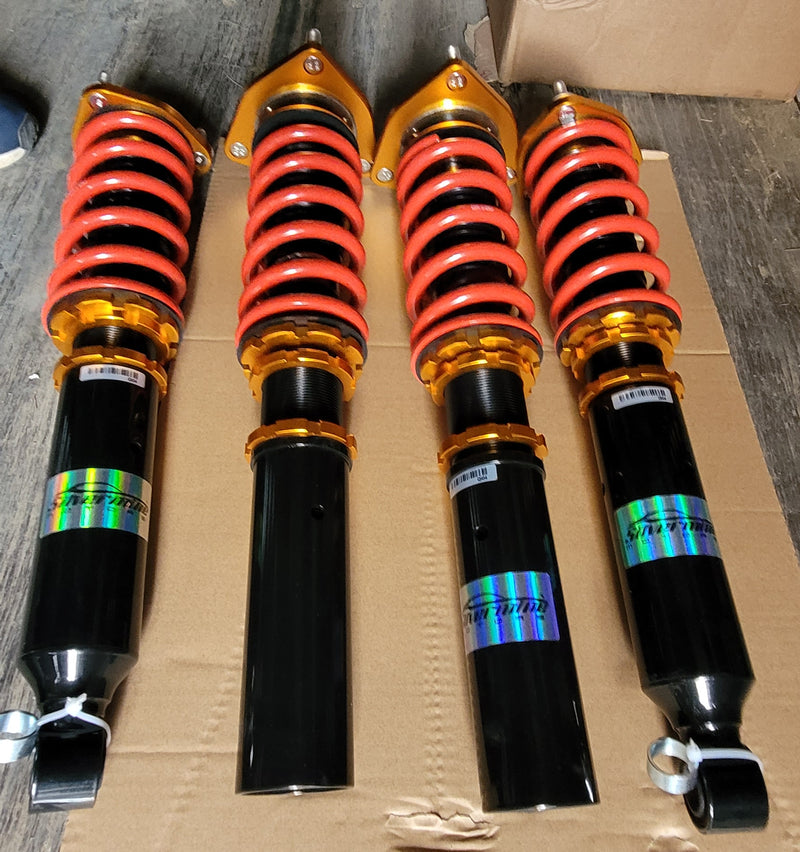

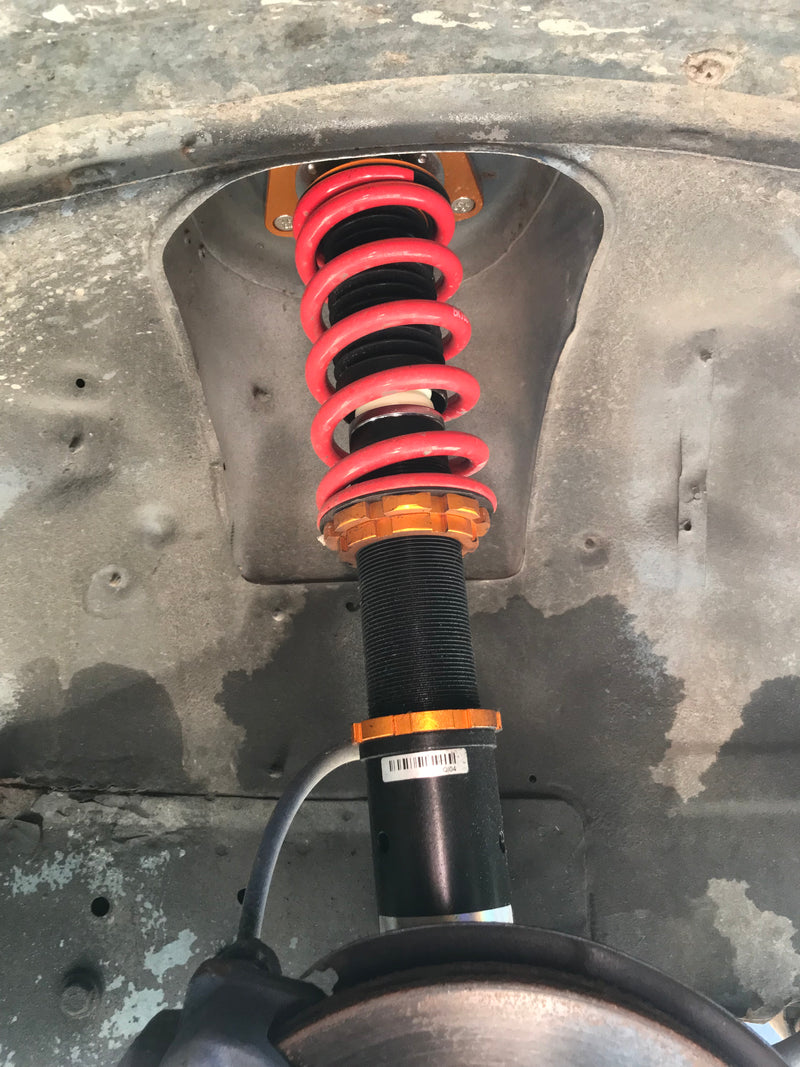

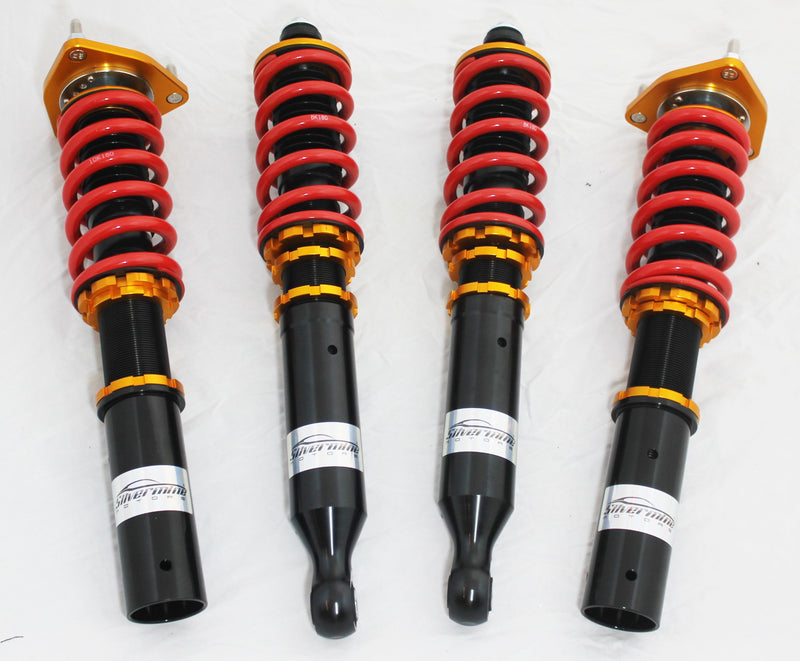

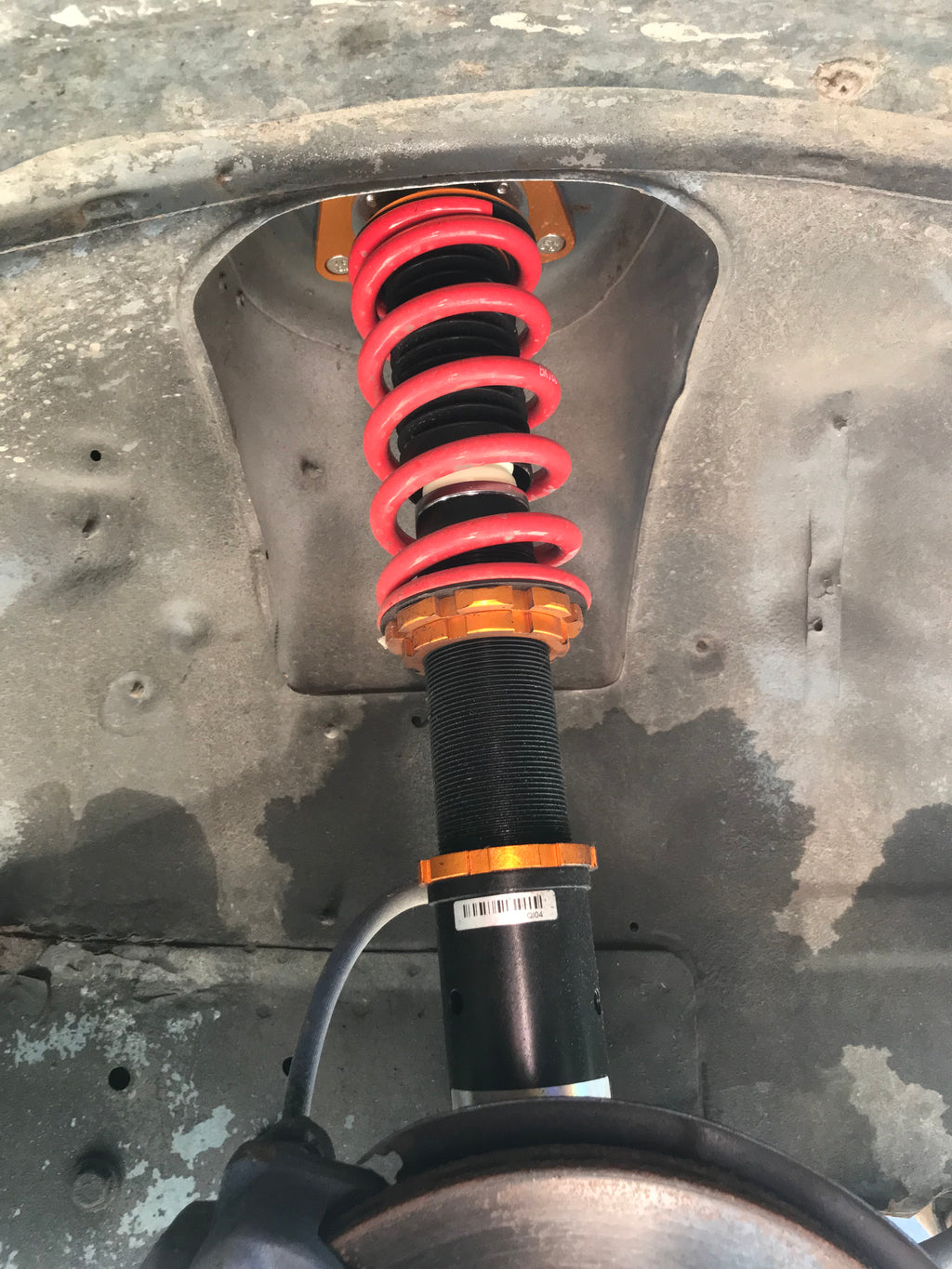

Images are General pictures. Actual coilover kit will be the same color as the pictures. The main difference is that the rear coilovers are completely Bolt on and rear coilovers do not have camber plates or shock adjustment.

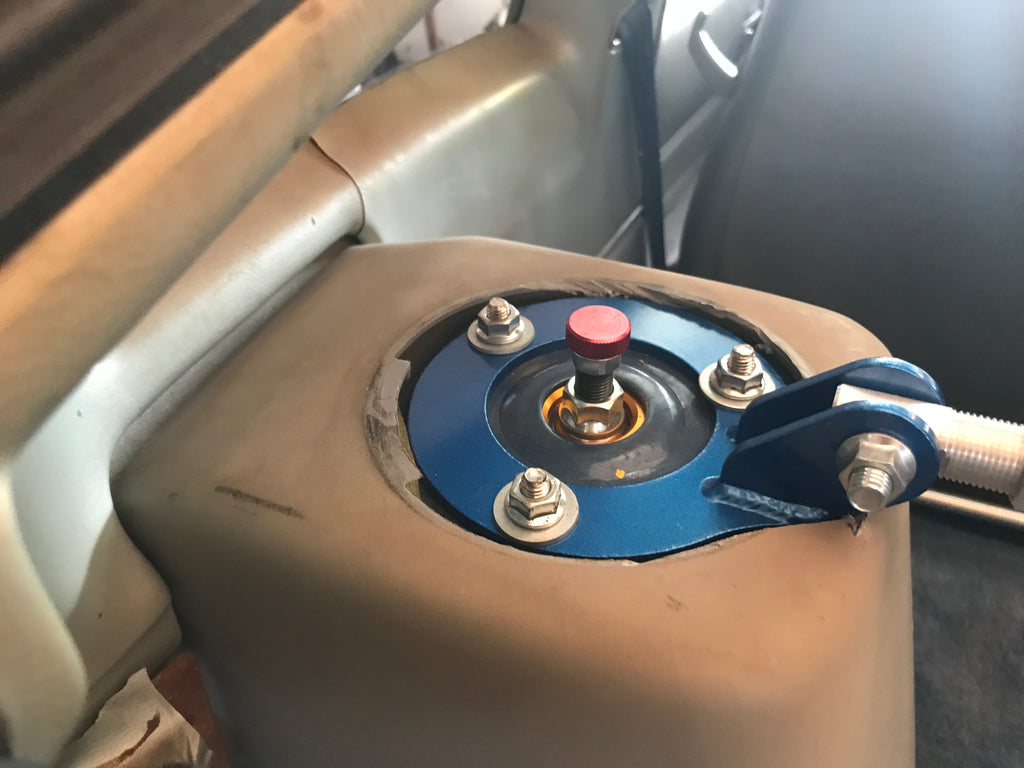

The front coilovers for the 280zx and Datsun 510 are identical and interchangble. Rear coilovers for those cars are not the same. bottom bolt bushing on 280zx is 20mm inside diameter and 510 is 16mm. 280zx has 3 bolt shock tower with camber plate while the 510 has 1 single bolt with rubber bushings.
