Subaru BRZ / Scion FR-S rear brake upgrade kit Wilwood with emergency brake cable Performance 2013 - 2017 gt86 frs Version 2
This rear brake kit includes:
1. Enormous Aluminum 4 piston Wilwood calipers (43.75mm pistons)
2. Enormous 315MM, 12.8 inch diameter CNC drilled, slotted, vented and machine balanced rotors
3. DOT approved custom fabricated steel braided brake lines
4. Custom fabricated T6061 aluminum brackets
6. Wilwood brake pads
7. All needed hardware
This kit is a complete kit. There are no other parts needed to complete the installation. Installing is very easy, and can be done in less than two hours. This kit has cable driven E-brake! Your stock emergency brake cable/ backing plate internal rotor system will work with our rotors. The lightweight Aluminum 4 piston calipers have 43.75mm diameter pistons. These calipers are available in many local auto parts stores, so replacing them is not a problem (part number Wilwood 6816). Large rotors dimensions are 315MM diameter x 20MM thick (12.8 inch diameter x .81 inch thick). The vented slotted and drilled rotors are precisely built with CNC machines. The steel braided brake lines are custom made to fit this brake kit for easy installation. The aluminum caliper brackets are made of the highest grade of aircraft quality aluminum on the market T6160. These brackets are very light and extremely strong. They will never rust or corrode. You have the choice of getting performance street brake pads or race only pads. I personally have this brake kit on my BRZ and it made a big difference, my car now stops on the dime. This brake upgrade is also extremely lightweight; it will help reduce the amount of unsprung weight. This is important since it will allow your suspension to react to road conditions much faster than with heavy cast iron calipers. Your car will handle better and be more predictable. Overall it’s a great brake kit that will make you stop faster and better than you could ever imagine.
Note: Requires 17 inch wheels. Some 16 inch wheels will fit, but some 16s will require wheel spacers to clear the caliper.

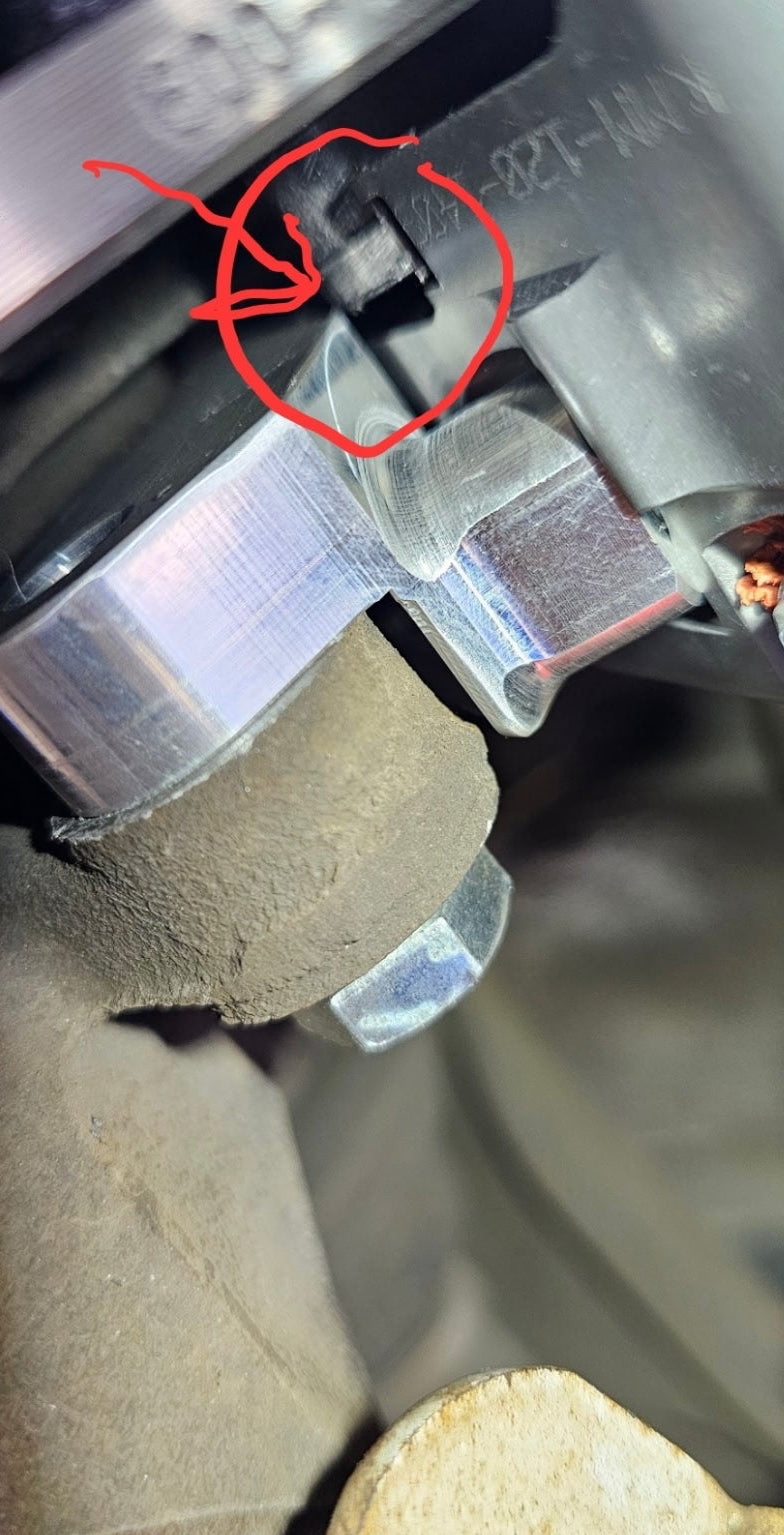

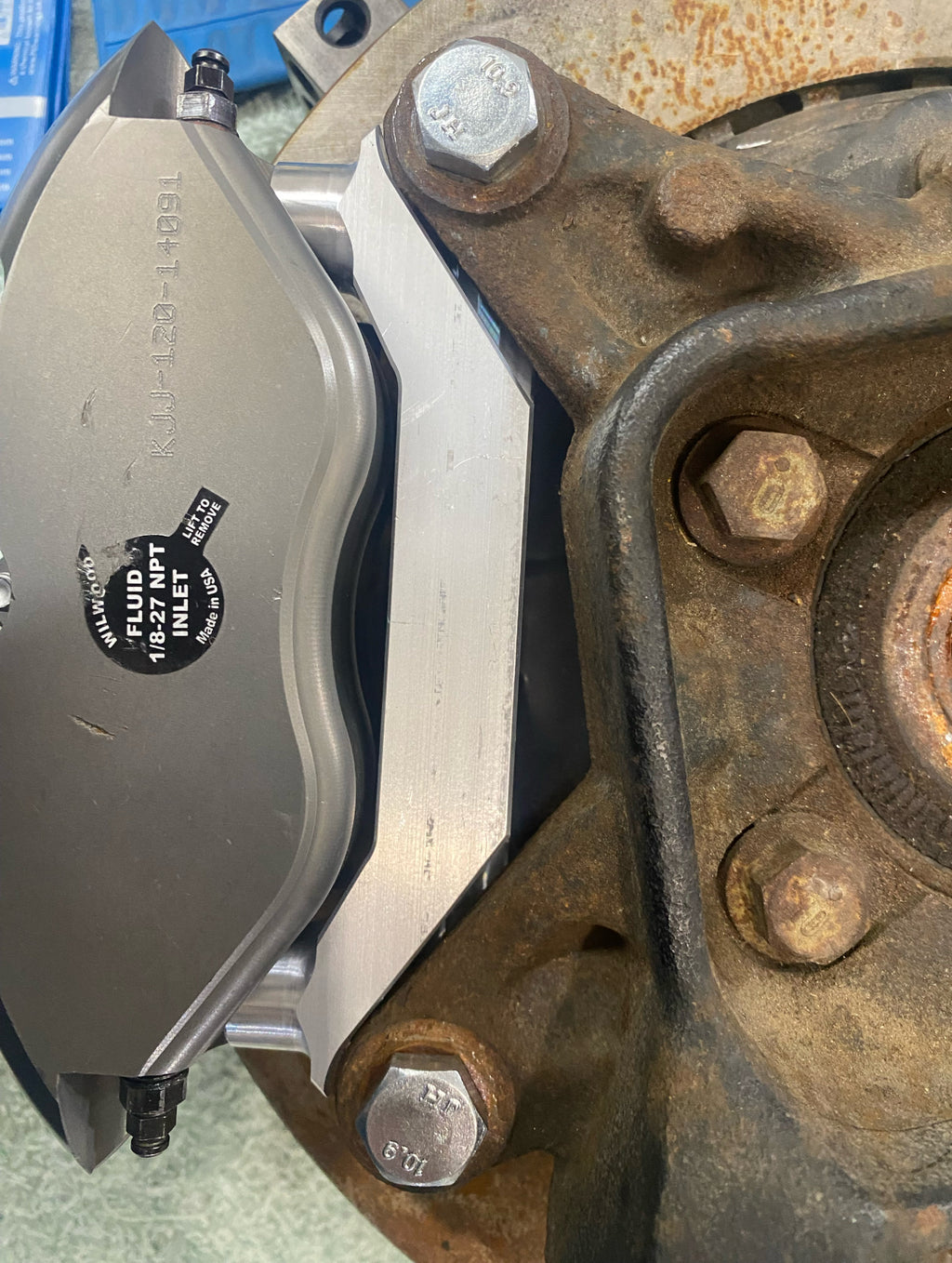

This is our version 2 Brake upgrade. It works perfectly with your original ABS system. The actual brackets are not pictured on the listing. They are Radial mount Brackets You do not need to cut or modify your original suspension knuckle in anyway.
