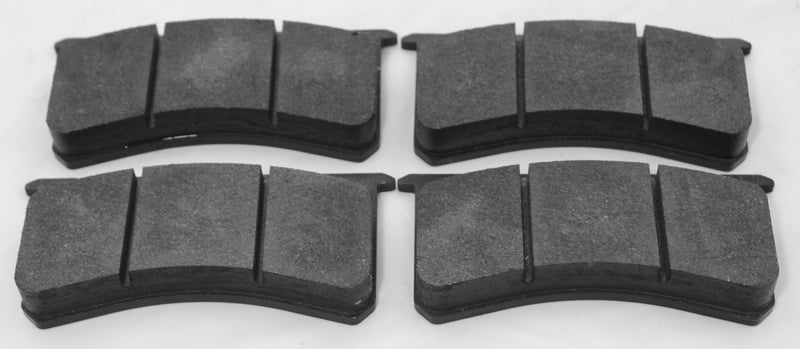

Wilwood front brake kit for Datsun Truck 64-77 521 320 620 520 Our most powerful front brake upgrade This brake kit includes: 1. Enormous Aluminum 4 piston calipers (43.75mm pistons) 2. 12 inch CNC dimpled, slotted, vented, Zink plated, and machine balanced rotors 3. DOT approved custom fabricated steel braided brake lines 4. Custom fabricated T6061 aluminum brackets 5. Wilwood brake pads 6. All needed hardware This is a complete kit. There are no other parts needed to complete the installation. Installing is very easy, and can be done in less than two hours. The lightweight Aluminum 4 piston calipers weight only 3.4 pounds and have 41mm diameter pistons. These calipers are available in many local auto parts stores, so replacing them is not a problem (part number Wilwood 6816). The vented slotted and Dimpled rotors are professionally built with CNC machines, and zinc plated to prevent rusting. They can be bought at any local auto part store. The steel braided brake lines are custom made to fit this brake kit for easy installation. The Aluminum caliper brackets are made of the highest grade of aircraft quality aluminum on the market T6061. These brackets are very light and extremely strong. They will never rust or corrode. You have the choice of getting performance street brake pads or race only pads. I personally have this brake kit on my 620 and it made a big difference, my car now stops on the dime. This brake upgrade is also extremely lightweight; it will help reduce the amount of unstrung weight. This is important since it will allow your suspension to react to road conditions much faster than with heavy cast iron calipers. Your car will handle better and be more predictable. Over all it’s a great brake kit that will make your Z stop faster and better than you could ever imagine!
Note: Requires 16 inch wheels Minimum. 16 inch steel sunraisers were tested by a customer and did not fit without wheel spacer. Diameter of 16 inch is fine. The shape of the face of the wheel will be the deciding factor if it will rub the caliper or not. Any 16 will work with a 1 inch wheel spacer. Or get a 17 inch wheel and have no spacer. 2006 Nissan Titan stock steel oem wheels will fit with a 1/2 inch thick spacer. You will have to machine down the hub diameter 1MM so you can slip the rotor over hubs.
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Very fast deliver! Only downside was the box that had all the parts in was thin/weak and the bottom of the box blew out after I moved it a 2nd time. All the brakes parts seems to fit only part I haven't tired yet is the 1" Wilwood master brake cylinder. (I might have order the wrong one, might need the 15/16" ones not sure yet) Over all very satisfied.
S
Storme Findlay
Blue on Black 7T3 620
I had shoulder replacement surgery and it took me a while to get around to putting on the brakes when I realized that I had 2 of the same caliper brackets,after 2 years I called and Edan exchanged 1 for the correct 1 and sent it out no problem the brakes where easy to install can’t wait to get her running to try em out thank you very much
